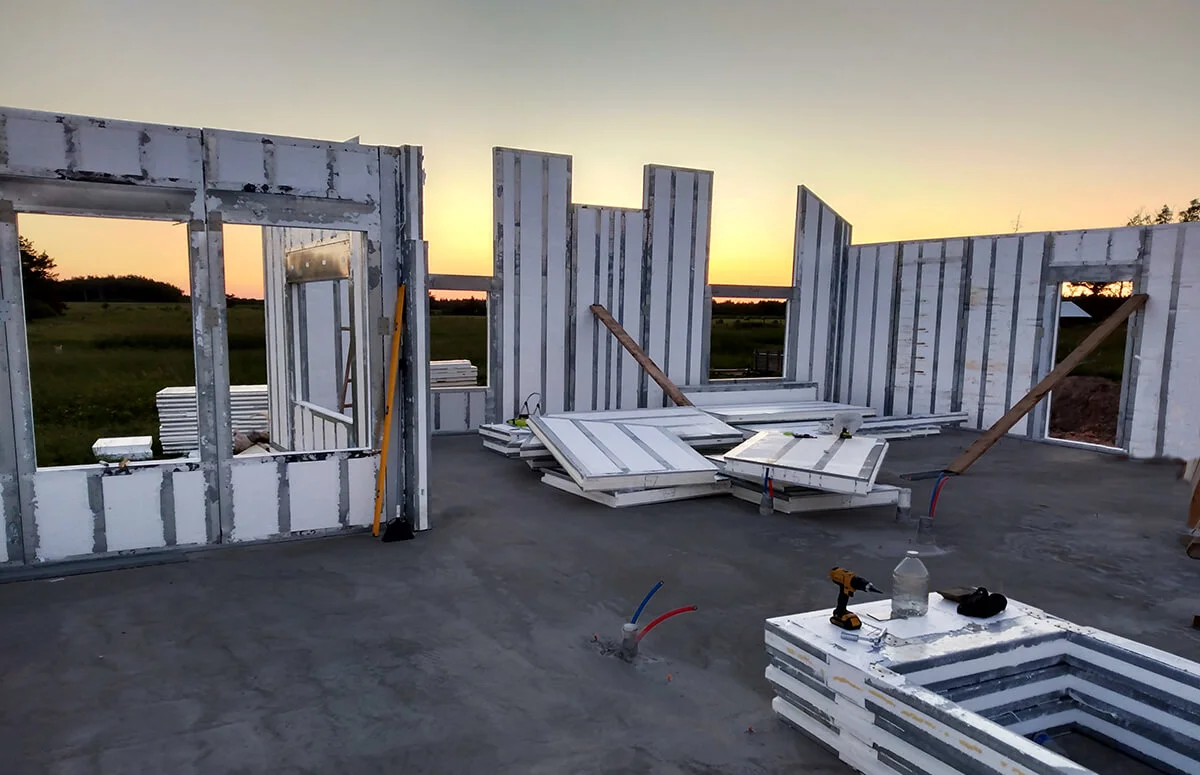

ThermaSteel utilizes patented composite joining technology that bonds light gauge steel structural members with EPS (expanded polystyrene), creating an advanced wall system that serves as structural framing, insulation, sheathing, and a vapor barrier all in one.
Key Benefits:
Energy Efficiency: Offers up to R-61 effective R-Value, reducing heating and cooling costs by 75% or more, ideal for Net-Zero and Passive House designs.
Sustainability & Safety: Life expectancy of 425 years, mold & mildew resistant, fire resistant, recyclable, and produced in a zero-waste facility.
Construction Efficiency: Lightweight 4-in-1 load-bearing panels cut framing time by 50%, with pre-cut, diagrammed, and labeled panels for easy assembly.
Versatility: Customizable for projects ranging from sheds to mid-rise buildings, offering exterior, interior, below-grade walls, floors, and roofs.

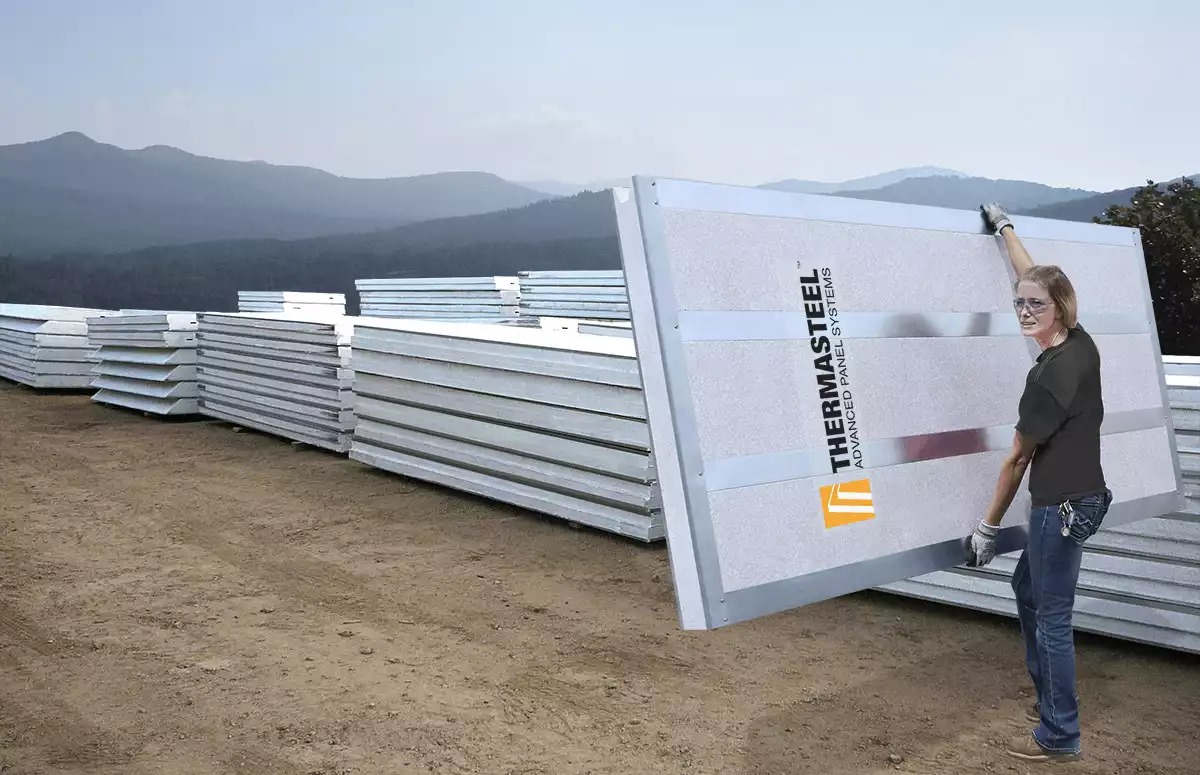

Steel Structural Insulated Panels
X Panel – Exterior Wall Panel
- Used mainly for exterior wall applications
- 5.5″ or 7.5″ thick, up to 4′ wide and 12′ tall
- Effective thermal performance of R51 to R61
- 4 or 5 structural studs on both faces of the panel (16″ or 12″ o.c.)
- Up to 42,000 plf load LRFD
- Ready for direct application of final skin

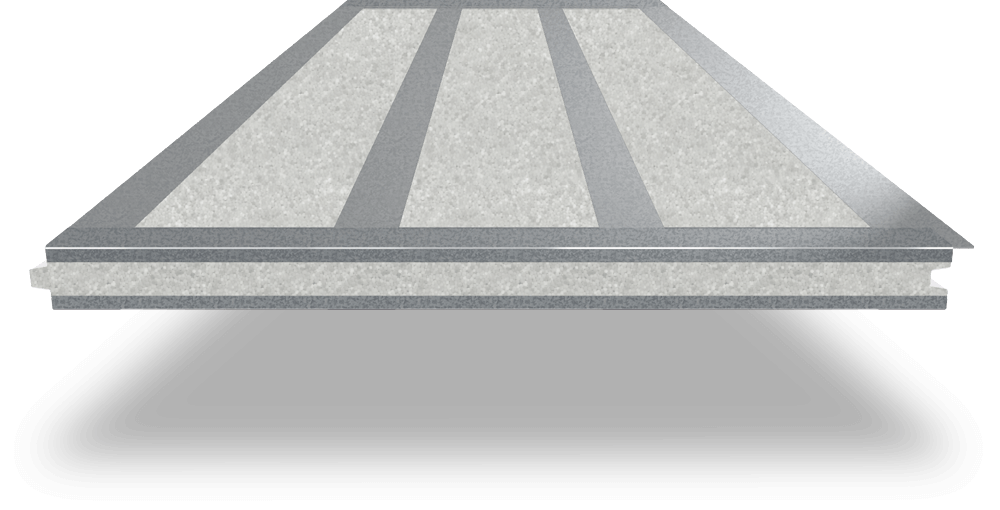

I Panel – Interior Wall Panel
- Used mainly for interior wall applications or tiny homes
- 3.5″ thick up to 4′ wide and 12′ tall
- Effective thermal performance of R28
- 4 structural studs on both faces of the panel (16″ o.c.)
- If you are looking for a quiet room or DIY, this is your panel!

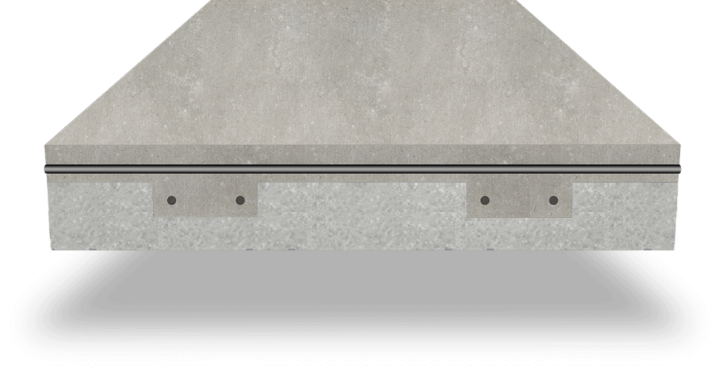

F Panel – Concrete Floor Panel
- Stay in place form for concrete slabs
- 7.5″ thick R58 insulation, 4′ wide 12′ long
- Two 8″ wide channels for rebar in the reinforced beams
- Capable of spanning up to 40 ft clear with minimum shoring
- Reduces concrete by 40% (average section is 58 psf)
- High STC rating fire stop between floors
- Reduces labor time by over 60%
- 5 studs to hang ducts or attach sheathing directly
R Panel – Roof Panel
- 5.5″ or 7.5″ thick up to 4′ wide and 12′ long
- Effective thermal performance of R51 to R61
- 4 or 5 structural studs on both faces of the panel (16″ or 12″ o.c.)
- Load bearing means we can reduce trusses by 2/3 (every 4-6 ft o.c.).
- 2 panels can connect directly allowing for cathedral ceilings and A frames without supports

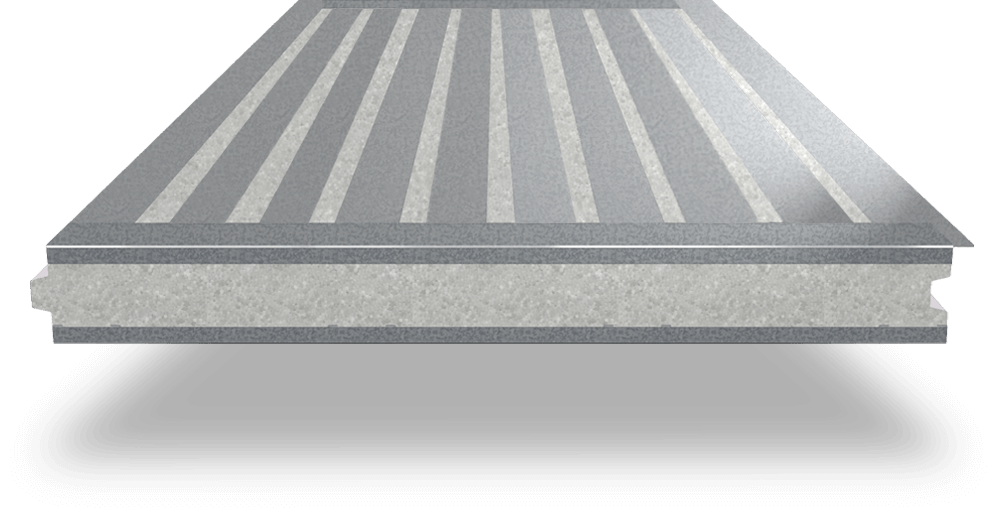

H Panel – Hurricane Panel
- Designed, tested, and certified to withstand 185mph, including flying debris
- 5.5″ or 7.5″ thick up to 4′ wide and 12′ long
- Effective thermal performance of R51 to R61
- 4 or 5 structural studs on the interior faces of the panel (16″ or 12″ o.c.)
- 11 studs on the exterior face making it projectile-safe

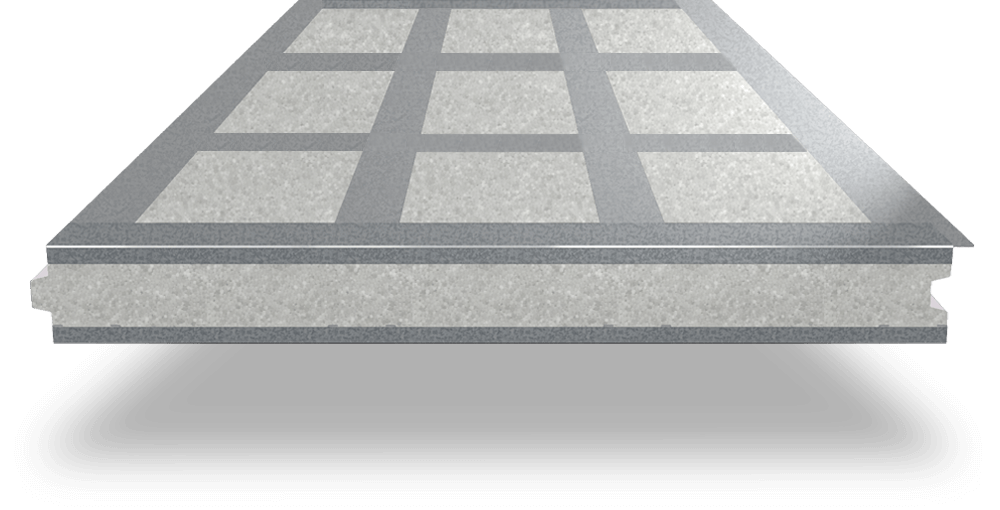

S Panel – Shear Wall Panel
- 5.5″ or 7.5″ thick up to 4′ wide and 12′ tall
- Thermally broken with three horizontal bracings
- Effective thermal performance of R51 to R61
- 4 or 5 structural studs on both faces of the panel (16″ or 12″ o.c.)
- Up to 2,420 plf with a 2.0 safety factor
B Panel – Below Grade Panel
- Used for foundation, knee walls, and retaining walls
- 7.5″ thick 1.5 density up to 4′ wide and 12′ tall
- Thermally broken with three sections and thermal performance of R61
- 4 or 5 structural studs on both faces of the panel (16″ or 12″ o.c.)
- Check the below grade manual for design guidelines and limitations
C Panel – Ceiling Panel
- Used as interior application under the truss or on the bearing walls
- 3.5″, 5.5″ , or 7.5″ thick up to 4′ wide and 12′ long
- Effective thermal performance of R28 to R61
- 4 structural studs on both faces of the panel (16″ o.c.)
- Pre-chased and ready to directly attach sheathing.
* Please scroll horizontally to see the entire table.
| Specs | X Panel | I Panel | F Panel | R Panel | H Panel | B Panel | S Panel | C Panel |
|---|---|---|---|---|---|---|---|---|
| Application | Exterior wall | Interior wall | Concrete floor | Roof | Hurricane wall | Below grade | Shear wall | Ceiling |
| Max size | 4′ x 12′ | 4′ x 12′ | 4′ x 12′ | 4′ x 12′ | 4′ x 12′ | 4′ x 12′ | 4′ x 12′ or 2′ x 12′ | 4′ x 12′ |
| Min size | any size 1/8″ changes | any size 1/8″ changes | any size 1/8″ changes | any size 1/8″ changes | 2″ changes | any size 1/8″ changes | 2′ or 4′ wide | any size 1/8″ changes |
| Thickness | 5.5″ or 7.5″ | 3.5″ | 7.5″ | 5.5″ or 7.5″ | 5.5″ or 7.5″ | 7.5″ | 5.5″ or 7.5″ | 3.5″ or 5.5″ |
| Special features | Can connect 2 panels for tall walls | Can connect 2 panels for tall walls | Includes chairs for rebar | Work diaphragm loads | Certified projectile protocol | 10′ limit | Works with every hold down | Ready for sheathing |
| EPS density (psf) | 1.0 or 1.5 | 1.5 | 1.0 | 1.0 or 1.5 | 1.0 or 1.5 | 1.5 | 1.0 or 1.5 | 1.0 or 1.5 |
| Thermal performance | R51 to R61 / U0.028 to U0.0204 | R28 / U0.043 | R58 / U0.0212 | R51 to R61 / U0.028 to U0.0204 | R51 to R61 / U0.028 to U0.0204 | R61 / U0.0204 | R51 to R61 / U0.028 to U0.0204 | R28 to R54 / U0.028 to U0.0204 |
| Stud configuration | 3.5″ / 8″ web 16″ or 12″ center | 3.5″ / 8″ web 16″ or 12″ center | 3.5″ / 8″ web 16″ or 12″ center | 3.5″ / 8″ web 16″ or 12″ center | 3.5″ / 8″ web 16″ or 12″ center | 3.5″ / 8″ web 16″ or 12″ center | 3.5″ / 8″ web 16″ or 12″ center with 6 horizontal bracings | 3.5″ / 8″ web 16″ or 12″ center |
| Acoustic (STC) rating | Commercial | Residential | Commercial | Commercial | Commercial | Commercial | Commercial | Residential |
| Connect multi-panels | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Thermally broken | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Energy code compliant | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Mold resistant | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Smoke and fire resistant | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Requires vapour barriers | No | No | No | No | No | No | No | No |
| Steel gauge | 14, 16, 18, 20, 24 CSJ | 16, 18, 20, 24 Track | 24 Track | 14, 16, 18, 20, 24 CSJ | 14, 16, 18, 20, 24 CSJ | 16 CSJ | 14, 16, 18, 20 CSJ | 18, 20, 24 CSJ / Track |
| Assembly type | Non-combustable | Non-combustable | Non-combustable | Non-combustable | Non-combustable | Non-combustable | Non-combustable | Non-combustable |
| Off gassing / allergens / toxic like wood | No | No | No | No | No | No | No | No |
